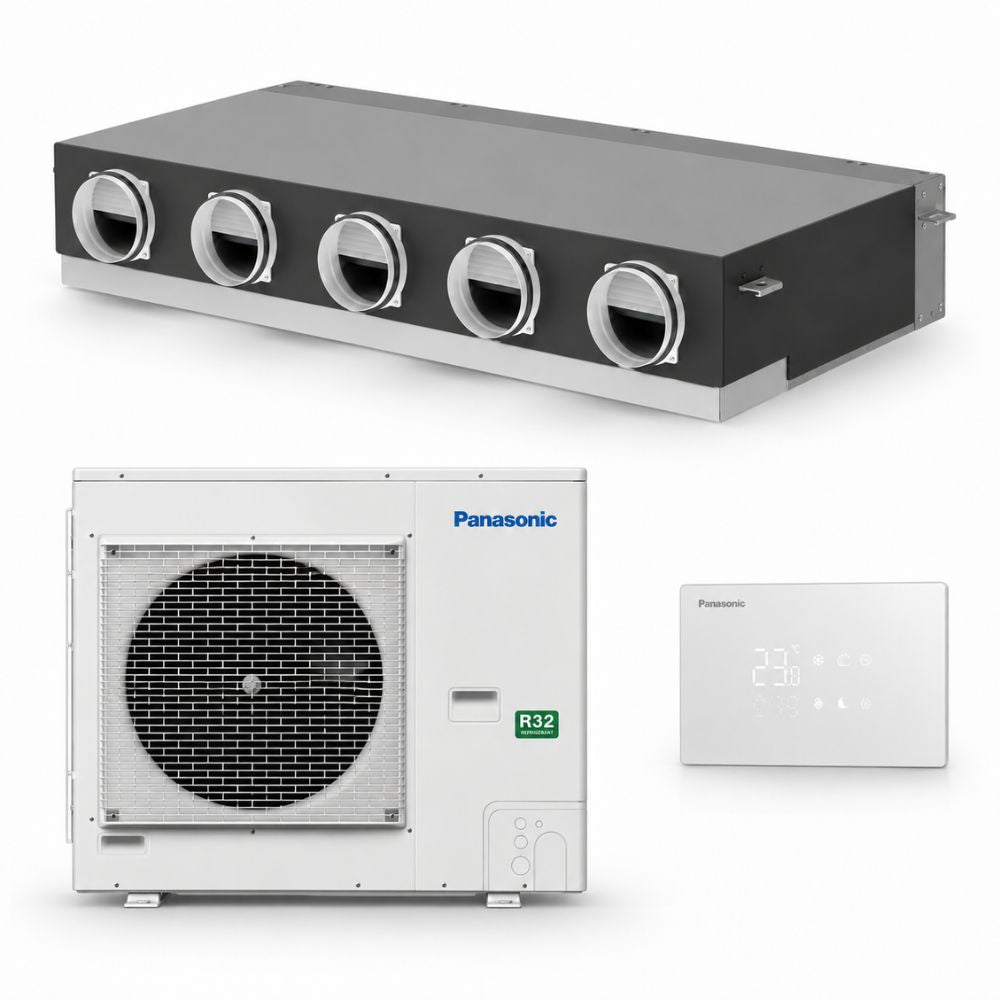

Panasonic PACi NX Standard 12.5kW Multi-Zone Ducted Air Conditioning System – KIT-125PQ51Z5 (S-1014PQ51E + U-125PZ3E5) - 1 ph
In stock
- Variant - One Phase
- Nominal capacity: Cooling 12.0kW / Heating 12.1kW
- Independent temperature control for each zone, with dedicated integrated fans and motors for every outlet
- Multi-zone control for 4 or 5 zones
- Flexible installation in either horizontal or vertical orientation
- Simplified ductwork design with reduced system complexity
- No bypass duct required, thanks to intelligent direct airflow control for improved comfort and efficiency
- Built-in Wi-Fi control for convenient remote system management
Couldn't load pickup availability
Get an extra 10% off and a Credit Limit, subject to T&C - Learn more
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Multi zone management – Energy saving solution
Each zone can be controlled independently via the wall‑mounted controller (PCZ‑EEB749), which can also operate multiple fans for wider coverage or higher capacity.
Control options
a. Individual zone control via an intuitive wall-mouted controller (PCZ‑EEB749)
b. Smart Wi‑Fi control through the Aquarea Home App
PACi NX Series Standard multi zone duct unit
12.5 kW
Kit KIT-125PQ51Z5
Remote controller PCZ‑EEB749
Cooling capacity (Nominal) kW 12.0
Cooling capacity (Min) kW 3.3
Cooling capacity (Max) kW 13.7
SEER / ηs,c (1) 254.5%
Heating capacity (Nominal) kW 12.1
Heating capacity (Min) kW 3.3
Heating capacity (Max) kW 15.2
SCOP/ηsc (2) % 143.2%
Indoor unit S-1014PQ51E
Number of fans 5
External static pressure (Nominal) (2) Pa 30
External static pressure (Min) (2) Pa 10
External static pressure (Max) (2) Pa 130
Indoor dimension (Height) mm 266
Indoor dimension (Width) mm 1455
Indoor dimension (Depth) mm 701
Indoor net weight kg 57
Outdoor unit U-125PZ3E5
Outdoor power source V 220 - 230 - 240
Current in cooling (1p 220V / 3p 380) A 17.20
Current in cooling (1p 230V / 3p 400) A 16.40
Current in cooling (1p 240V / 3p 415) A 15.80
Current in heating (1p 220V / 3p 380) A 16.40
Current in heating (1p 230V / 3p 400) A 15.70
Current in heating (1p 240V / 3p 415) A 15.00
Outdoor air flow (Cool) m³/min 82.0
Outdoor air flow (Heat) m³/min 80.0
Outdoor sound pressure (Cool -Hi) dB(A) 55
Outdoor sound pressure (Heat -Hi) dB(A) 55
Outdoor sound power (Cool -Hi) dB(A) 73
Outdoor sound power (Heat -Hi) dB(A) 73
Outdoor dimension (Height) mm 996
Outdoor dimension (Width) mm 980
Outdoor dimension (Depth) mm 370
Outdoor net weight kg 87
Pipe diameter (Liquid) Inch (mm) 3/8 (9.52)
Pipe diameter (Gas) Inch (mm) 5/8 (15.88)
Pipe length range m 5 ~ 50
Elevation difference (in / out) (3) m 15 / 30
Pipe length for additional gas m 30
Additional gas amount g/m 45
Refrigerant (R32) / CO2 Eq. kg / T 2.80 / 1.89
Operating range (Cool - Min) °C -10
Operating range (Cool - Max) °C 43
Operating range (Heat - Min) °C -15
Operating range (Heat - Max) °C 24
